Winstar: PCB Upgrade Version for WH1602B/WHZ1602B & WH1602K series
Winstar is going to upgrade the PCB board for all WH1602B and WH1602K series running change from September, 2018. We redesigned the PCB circuit layout for having better performance. The mechanical outline size and the electrical characters for new version PCB and the existing one are the same, but the layout will look different in appearance.
The upgraded PCB version will improve many aspects performance as below:
1. Improved ESD protection: add ground jumpers for bezel (frame)/ mounting hole.
2. For those using RW1603 IC modules, customers can select 8bit/4bit SPI/I2C interface function by changing jumper.
3. Add decoupling capacitor: it filters out a certain frequency or range of frequencies from a circuit which will improve the LCD modules stability.
4. Increase VOP internal adjustment circuit.
Affected Items:
All WH1602B series, WH1602B1 series, WH1602B3 series, WHZ1602B series, WH1602K series LCD modules.
Schedule: Running change from September 2018.
Appearance: PCB circuit layouts will be optimized and re-designed, the appearance will be different. For more information contact info@dachs.es
1.1 inch COG OLED WEO009664B
WEO009664B is a 1.1 inch passive matrix OLED display module which is made of 96×64 dots. The WEO009664B is built in with SSD1327 IC, it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, 3V power supply, 1/64 duty cycle and 16 gray scale. This 1.1” COG WEO009664B model can be regarded as an alternative of 1.1″ TAB WEX009664A/B model which was be EOL in 2017. These two models have similar Active area size and having same diagonal size of 1.1 inch.
The WEO009664B is a COG structure OLED display which is ultra thin and no need of backlight; it’s lightweight and low power consumption. This 1.1 inch OLED module is suitable for portable device, personal care appliance, health device, meter device, etc. The released emitting color for this item is available in yellow, other colors will be released soon. WEO009664B module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.


1.71 inch COG OLED WEO012832G
WEO012832G is a 1.71 inch passive matrix OLED display module which is made of 128×32 dots. The module is built in with SSD1307 IC, it supports I2C and 4-Wire SPI interface, 3V power supply, 1/32 duty cycle. The WEO012832G is a COG structure OLED display which is ultra thin and no need of backlight; it’s lightweight and low power consumption. This 1.71 inch OLED module is suitable for smart home application, portable device, health device, testing equipment, etc. The released emitting color for this item is available in white; other colors will be released soon. WEO012832G module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.


2.23 inch COG+PCB OLED WEP012832A

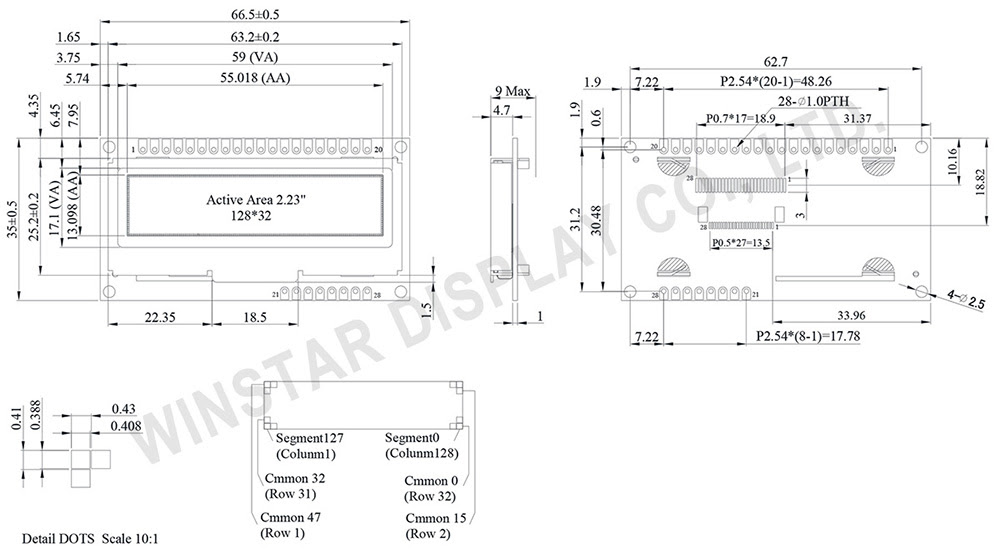

Winstar released a new COG with PCB OLED WEP012832A model; it is 2.23″ diagonal made of 128×32 pixels, it’s very readable due to the high contrast and bigger size of OLED display. The module is built in with SSD1305Z IC, it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for Logic from 3V ~ 5V.
The WEP012832A is a COG with PCB OLED display which is having 20 metal pin-outs and mounting holes on the board. We provide a mini vibration motor and buzzer optional for this WEP012832A module. Also, customers can choose Hot Bar Soldering / metal pins with FPC and connector (part no. will be different) for your applications.
This 2.23 inch OLED module is suitable for smart home application, medical device, smart control, etc. The released emitting color for this item is available in white. WEP012832A module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.
